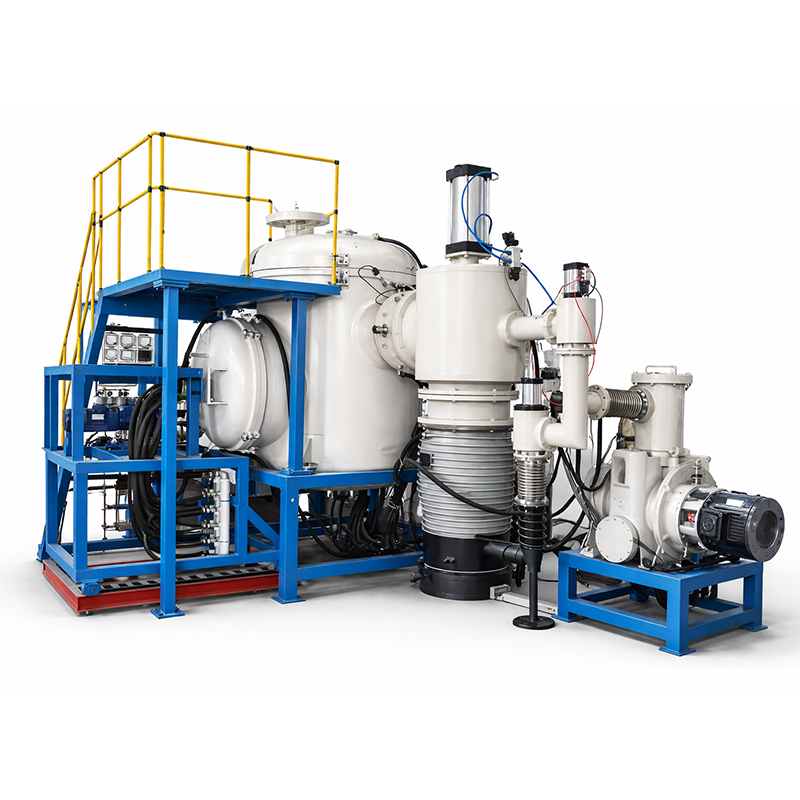

The 200kg Copper Vacuum Induction Melting Furnace is designed for high-precision melting and casting of copper and its alloys in a controlled vacuum or inert atmosphere. With a robust structure and advanced features such as an integrated casting system and touch-screen control, this furnace ensures reliable and efficient performance. Ideal for metallurgical research and industrial applications, it provides superior results with high energy efficiency and enhanced product quality.
Technical Parameters
The 200kg Copper Vacuum Induction Melting Furnace is designed for high-precision melting and casting of copper and its alloys in a controlled vacuum or inert atmosphere. With a robust structure and advanced features such as an integrated casting system and touch-screen control, this furnace ensures reliable and efficient performance. Ideal for metallurgical research and industrial applications, it provides superior results with high energy efficiency and enhanced product quality.
Technical parameters：
| Parameter | Specification |
| Model | KS-VF-VIM200 |
| Equipment Type | Vacuum Induction Melting and Casting Furnace |
| Power Capacity | 250 KVA |
| Max Temperature | 1500 °C |
| Crucible Capacity | 200 kg (based on copper) |
| Ultimate Vacuum | 6.67 × 10⁻³ Pa |
| Pressure Rise Rate | ≤ 4.0 Pa/h |
| Frequency | 1000 – 2000 Hz (auto tracking) |
| Power Supply Type | Medium Frequency (KGPS) |
| Protective Gas | Argon / Nitrogen |
| Control System | PLC + Touch Screen |
| Casting Function | Multi-batch casting in one melt |
| Feeding System | Equipped with in-process feeding system |
| Data Interface | Reserved |
| Furnace Structure | Vertical structure with side opening door |
| Door System | Sliding rail type, easy cleaning and maintenance |
| Gas System | Automatic and manual gas inlet/outlet |
| Furnace Body | Double-layer water-cooled structure |
| Chamber Material | Inner SUS304 stainless steel |
| Outer Material | Carbon steel painted |
| Furnace Lid | Double-layer water-cooled, motorized lifting |
| Observation Window | Multi-position rotating view ports |
| Temperature Measurement | Thermocouple + fast probe |
| Induction Coil | Water-cooled copper coil |
| Electrode System | Coaxial water-cooled electrode |
| Casting System | Manual tilting casting |
| Vacuum System | Mechanical Pump + Roots Pump + Diffusion Pump |
| Vacuum Measurement | Digital vacuum gauge |
| Cooling System | Closed-loop water cooling |
| Safety System | Water pressure alarm + interlock protection |
