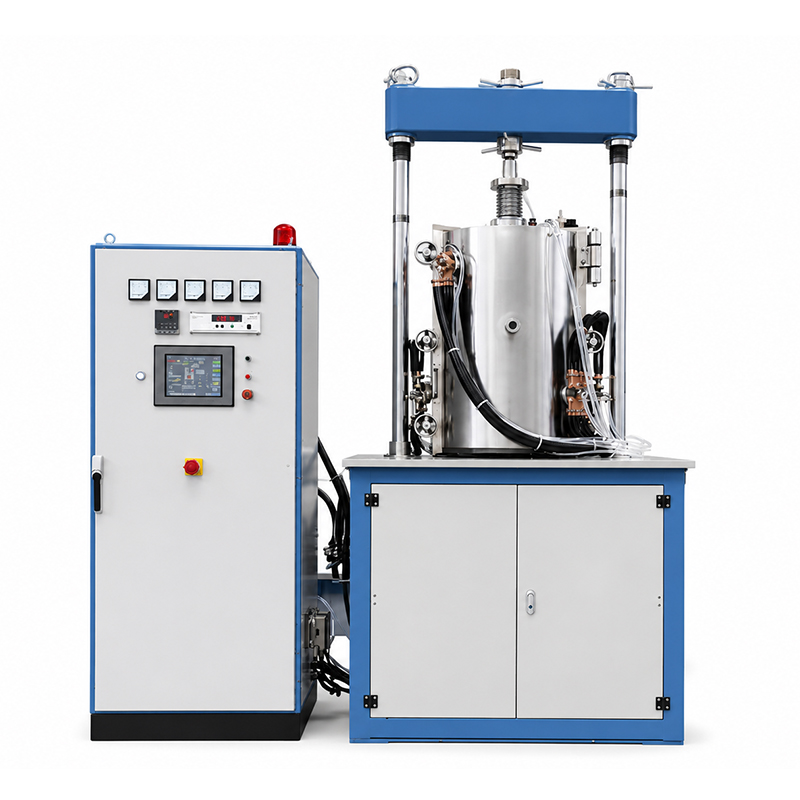

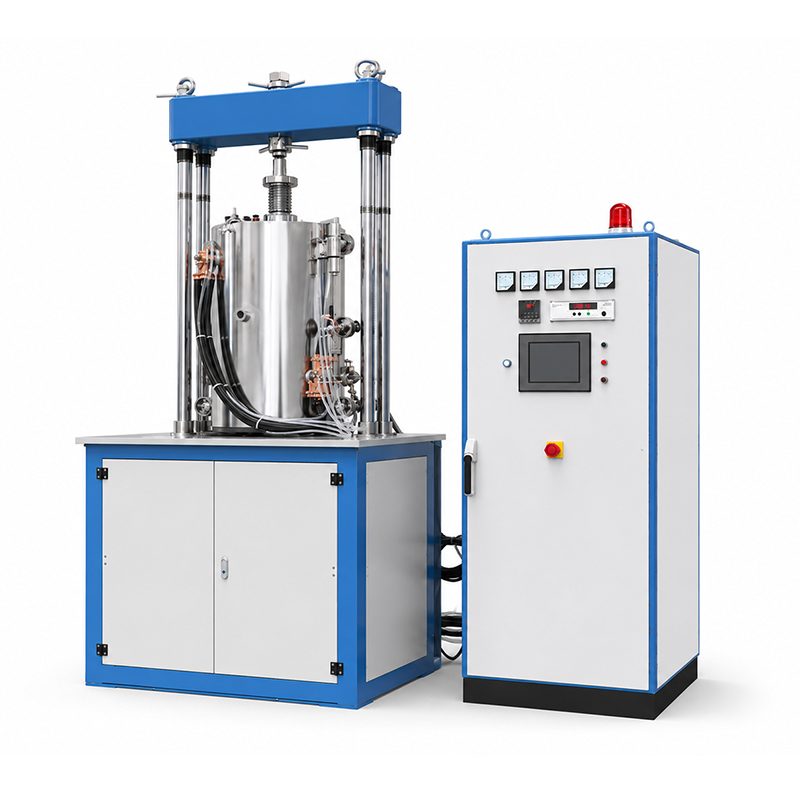

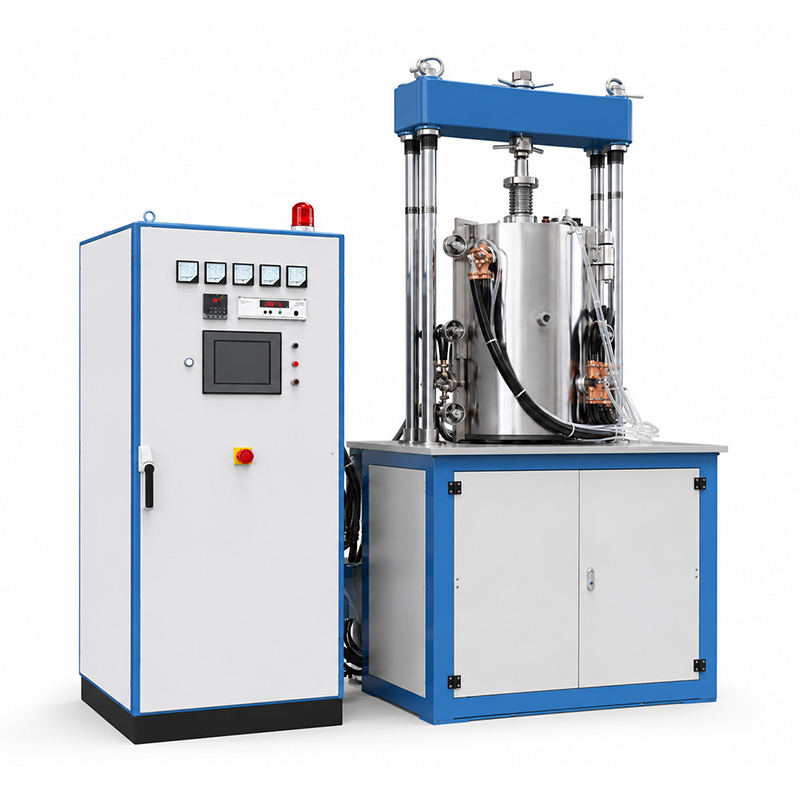

Vacuum & Heat Assisted Hydraulic Press is an advanced material processing system that combines hydraulic pressing, vacuum technology, and induction heating in one integrated platform. It provides a clean, controlled processing environment to improve material density, bonding quality, and overall product performance while minimizing oxidation and contamination.
Technical Parameters
Vacuum & Heat Assisted Hydraulic Press is an advanced material processing system that combines hydraulic pressing, vacuum technology, and induction heating in one integrated platform. It provides a clean, controlled processing environment to improve material density, bonding quality, and overall product performance while minimizing oxidation and contamination.
The system is widely used for hot pressing, diffusion bonding, powder metallurgy, ceramic sintering, composite material fabrication, and advanced materials research. It is an ideal solution for universities, research institutes, and industrial laboratories requiring reliable, precise, and customizable high-temperature processing equipment.
Technical Parameters:
| Parameter | Specification |
|---|---|
| Model | KS-VF-VHP50 |
| Equipment Type | Vacuum & Heat Assisted Hydraulic Press |
| Hydraulic Press Capacity | 50 Ton |
| Hydraulic Structure | Four-Column Open Pillar Type |
| Press Type | Double-Acting Hydraulic Press |
| Heating Method | Medium Frequency Induction Heating |
| Heating Power | 30 kW |
| Maximum Temperature | 1000°C |
| Working Temperature | 850°C |
| Heating Rate | 10–20°C/min |
| Temperature Control Accuracy | ±1°C |
| Upper Vacuum Chamber | Transparent Quartz Tube |
| Lower Vacuum Chamber | SS304 Water-Cooled Chamber |
| Quartz Tube Size | OD300 × ID250 × H600 mm |
| Heating Zone | Ø250 × H600 mm |
| Working Zone | 150 × 150 mm |
| Maximum RAM Stroke | 200 mm |
| Hydraulic Cylinder Stroke | 700 mm |
| Pressure Control | Electro-Hydraulic PID Control |
| Pressing Speed | 0.5–4 mm/s Adjustable |
| Ultimate Vacuum | ≤5.0 × 10⁻⁴ Pa (Cold State) |
| Vacuum System | Rotary Vane Pump + Roots Pump + Diffusion Pump |
| Control System | PLC + Touch Screen |
| Power Supply | 380–400 V, 3 Phase, 50 Hz |
