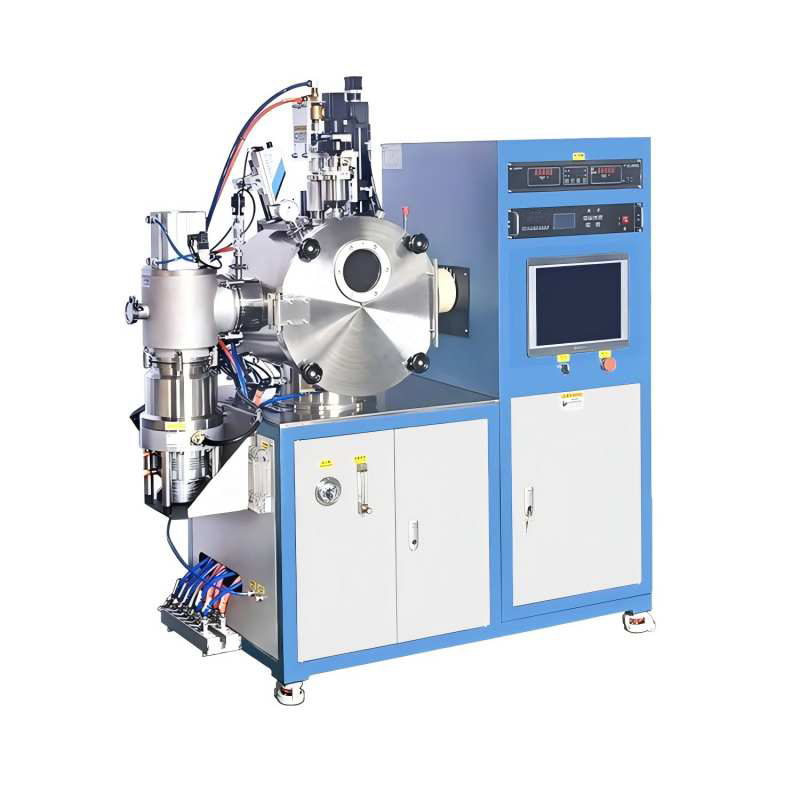

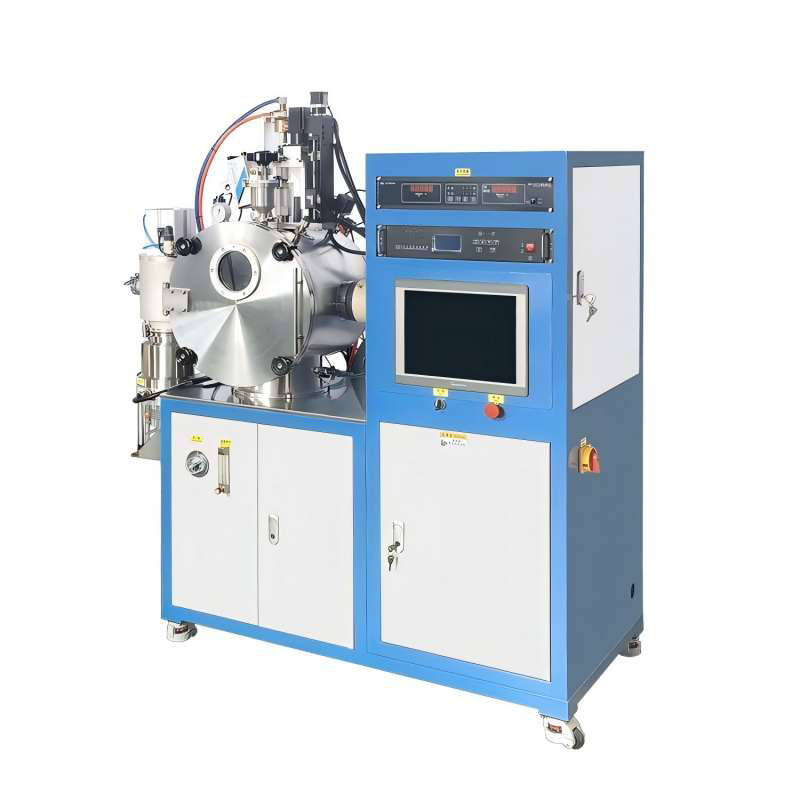

3kg Iron Vacuum Induction Melting Furnace with Secondary Feeding and Stirring Functions

Product Features

1·Fast melting speed, the maximum temperature can reach 1800℃ with the insulation cover installed

2·Programmable temperature control, set the heating or cooling curve according to your process requirements, and the equipment will automatically heat or cool according to this process

3·With a pouring device, the molten sample can be poured into the pre-prepared ingot mold to cast the sample shape you want

4·Can be melted under various atmosphere conditions: air state, protective atmosphere conditions and high vacuum conditions, buy one equipment, realize multiple functions; save your cost to the greatest extent.

5·With touch screen control, you can intuitively observe the operation process of each component and can intuitively display the operating status of each component.

6. Equipped with mechanical stirring function, the speed is adjustable to provide material melting uniformity

7. Equipped with a secondary feeding device, other alloy trace elements (small pieces, mainly granular materials) can be added during the melting process

8. The furnace body is made of stainless steel and water-cooled to ensure that the shell temperature is lower than 35℃ to protect your personal safety

8·Control mode: touch screen + plc

Technical Parameters:
