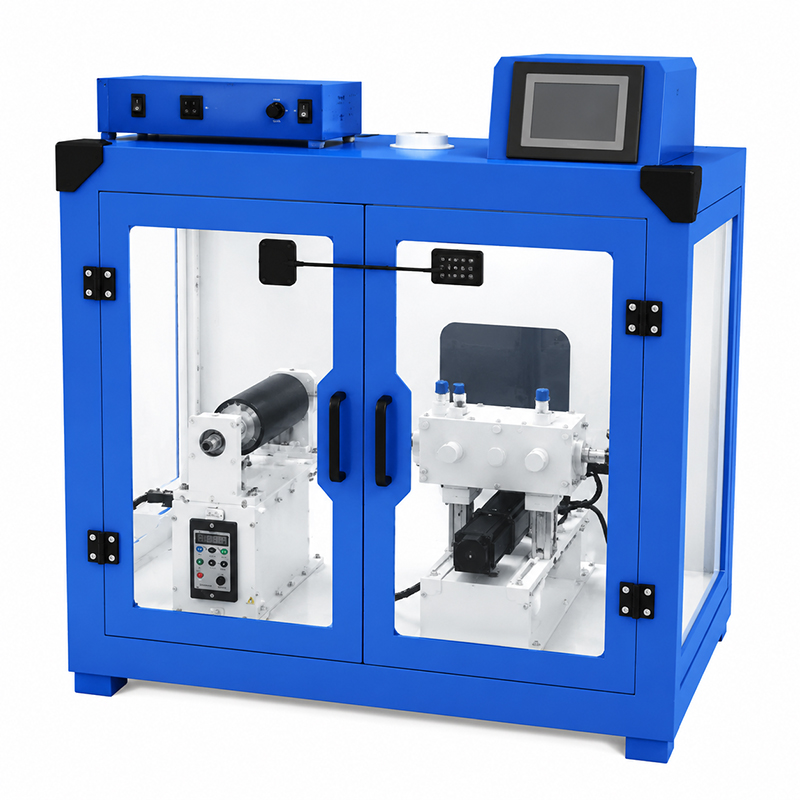

The KS-ESP-H11 electrospinning machine is a versatile and precise laboratory instrument designed for the production of ultrafine fibers and nanofibrous mats. Its compact, fully enclosed design ensures a controlled and safe environment for handling delicate polymer solutions, while the transparent panels provide clear visibility of the fiber formation process.
Technical Parameters
Product Description：
The KS-ESP-H11 electrospinning machine is a versatile and precise laboratory instrument designed for the production of ultrafine fibers and nanofibrous mats. Its compact, fully enclosed design ensures a controlled and safe environment for handling delicate polymer solutions, while the transparent panels provide clear visibility of the fiber formation process. This machine excels in creating uniform fiber structures, suitable for advanced applications in biomedical scaffolds, filtration membranes, drug delivery systems, and tissue engineering. The integrated multi-nozzle and coaxial options allow researchers to explore complex fiber architectures, while the modular setup ensures flexibility for experimenting with different materials and solvent systems. Ideal for research laboratories, universities, and industrial R&D settings, it combines ease of operation with consistent, high-quality fiber production for a wide range of innovative applications.
Technical Parameters:
| Parameter | Specification |
|---|---|
| Model | KS-ESP-H11 |
| Power Supply | 220V, 50/60Hz, 100W |
| High Voltage | Positive: 0–30kV, digital display; Negative: 0–10kV, digital display |
| Injection System | Suitable for syringes: 1ml, 5ml, 10ml, 20ml, 30ml, 50ml, 100ml; 3 slots (can insert 3 syringes); dual channel optional |
| Nozzle System | Single nozzle diameter: 0.1–1.6mm; Coaxial nozzle: double, triple, quadruple layers; Island nozzles: double–six-layer options; Parallel nozzle: mixed fibers; Movable distance: 0–200mm, precision speed: 1–1500mm/min, accuracy 1mm/min |
| Rotary Collector | Speed: 120–3000rpm, precision 1rpm; Optional speed: 0–1300rpm, precision 0.1rpm; Roll diameter: D=89mm, L=200mm; Release film D=102mm, L=200mm |
| Flat Plate Collector | Size: 20×20cm; Release film included |
| Fine Fiber Collector | Diameter: 1–6mm; Can hold metal wire; Sliding block driven, precision 1–1000rpm, accuracy 1rpm |
| Fixed Direction Collector | Diameter: 12–20cm; High speed 120–3000rpm; max line speed 31.4m/s |
| Parallel Electrode Collector | Diameter: 12cm, length 20cm; Steel rod quantity: 12; Speed: 0–3000rpm, precision 1rpm |
| Multi-tube Membrane Collector | Shaft diameter ≥3mm; Shaft number: 1–14; Motor speed: 0–300r/min, precision 0.1r/min; Roller speed: 0–900r/min, precision 0.3r/min; Rated voltage 110–220V |
| Airflow Assistance System | For high viscosity and difficult-to-evaporate solvent systems; Mainly for PEO, polysaccharides; Pressure: 0–35KPa, precision 0.2KPa |
| Cabinet | Metal shell with anti-corrosion paint + insulation + observation window; Exhaust system; Lighting for visual inspection |
| Machine Size | 800mm L × 600mm W × 700mm H; Net weight: 35kg |
