Manually 15T hydraulic pallet powder press machine with digital display

Product Description

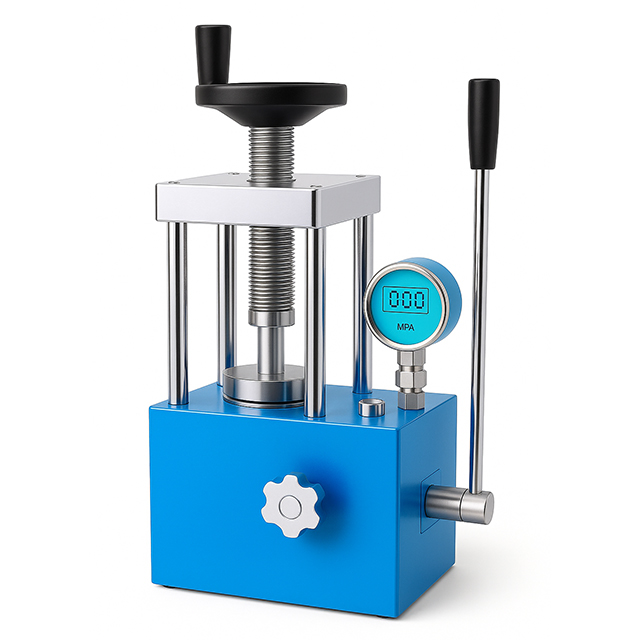

The KS-MHP-15S Manual Hydraulic Press is a compact, high-precision lab instrument engineered for efficient sample preparation in a wide range of scientific and industrial applications. Designed with modern laboratory standards in mind, this 15-ton press delivers dependable performance with excellent pressure stability and durability.

With a maximum pressure capacity of 15 tons and a finely controlled range of up to 30MPa, the KS-MHP-15S is suitable for pressing powder materials into tablets or disks, making it ideal for sample preparation in fields such as materials science, analytical chemistry, catalysis, and pharmaceutical R&D. The built-in digital pressure gauge displays values clearly in tons (0.00–15.00T), helping users to monitor and control pressure with greater precision and repeatability.

The hydraulic system features a durable chrome-plated oil cylinder (Φ80mm), providing long-lasting performance with excellent wear resistance. The four-post column design ensures stable vertical movement and minimizes misalignment during pressing. The worktable has a generous Φ90mm diameter, accommodating a variety of molds and tooling options. Its 30mm maximum piston stroke is perfectly matched for small and medium-sized press operations.

A key design highlight is its seamless sealing structure, which significantly reduces oil leakage and minimizes maintenance needs, ensuring consistent operation over extended periods. The compact frame is built with durable, high-strength materials and coated with an anti-corrosion finish, offering both reliability and aesthetics.

User-friendly operation is another advantage of the KS-MHP-15S. It features a large turning handle for easy manual pressure application and a secondary lever handle for finer control. The digital pressure readout helps eliminate guesswork, while the ergonomic pressure knob and smooth hydraulic system allow operators to work comfortably even in long sessions.

Thanks to its compact design and modest weight of 40kg, this hydraulic press is easy to move and position on any lab bench, requiring minimal installation space. It operates independently without the need for electricity or air supply, making it a reliable tool for both field and laboratory use.

Applications include:

Laboratory research on new material development

Preparation of KBr pellets for FTIR spectroscopy

Pressing powders for X-ray fluorescence (XRF) analysis

Tablet  forming in pharmaceutical and catalyst industries

Sample compaction for ceramics, glass, and composite materials

Whether in universities, industrial R&D, or quality control labs, the KS-MHP-15S delivers reliable, safe, and efficient pressing performance. With its balance of affordability, precision, and durability, this model continues to be a top choice for researchers and technicians seeking excellence in sample preparation.

Technical Parameters：
