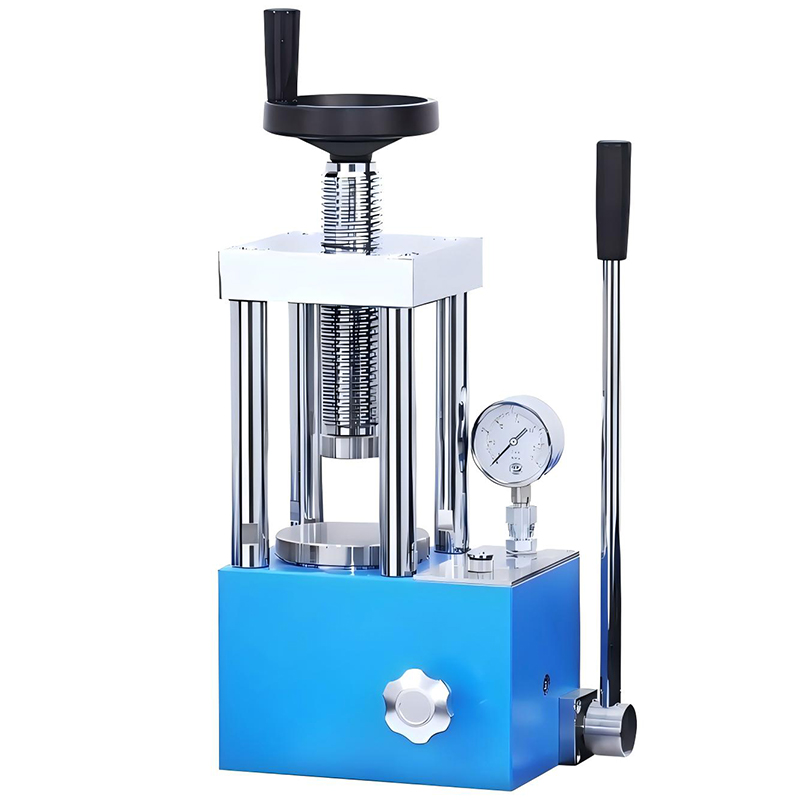

30Ton manually hydraulic pallet powder press machine with protective cover

Product Description: KS-MHP-30F Manual Hydraulic Pellet Press (30T Capacity)

The KS-MHP-30F is a premium manual hydraulic pellet press designed to deliver powerful, precise, and efficient pressing operations up to 30 tons (31.5 MPa). Engineered with reliability and durability in mind, this model is suitable for a wide range of laboratory and industrial applications where consistent and controllable pressure is essential. It features a robust four-column structure and is equipped with a dual-display gauge for pressure and strength, ensuring intuitive operation and high accuracy.

The press adopts a seamless integrated hydraulic structure, which significantly reduces the risk of oil leakage and prolongs the operational life. Its chromium-plated Φ110mm piston is crafted to withstand high pressures while maintaining dimensional stability. The worktable of Φ120mm offers sufficient surface area for various molds and dies, making it highly adaptable to different sample preparation tasks.

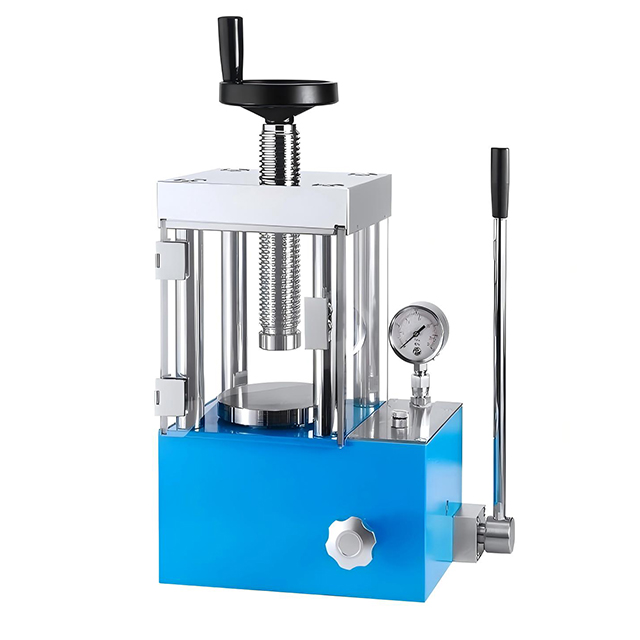

Safety is also a priority in the KS-MHP-30F. The unit includes a transparent organic glass protective shield, which acts as a barrier during high-pressure operations, ensuring operator safety without compromising visibility. The press’s high pressure stability (≤1MPa/10min) guarantees uniform pressing results, critical for material consistency and experimental reliability.

This model is widely applied in fields such as material science, ceramics, powder metallurgy, battery research, and analytical sample preparation. Whether used for forming powder pellets for XRF analysis or compacting materials in R&D environments, the KS-MHP-30F delivers outstanding performance in a compact and user-friendly format.

The compact size (305 × 195 × 425mm) and reasonable weight of 65Kg make it suitable for benchtop installations in laboratories with limited space. Its manual operation mode provides direct and precise control over the pressing process without relying on external power, making it ideal for remote or low-resource environments.

Choose the KS-MHP-30F for a durable, safe, and efficient solution for all your precision pressing needs.

Technical Parameters：
