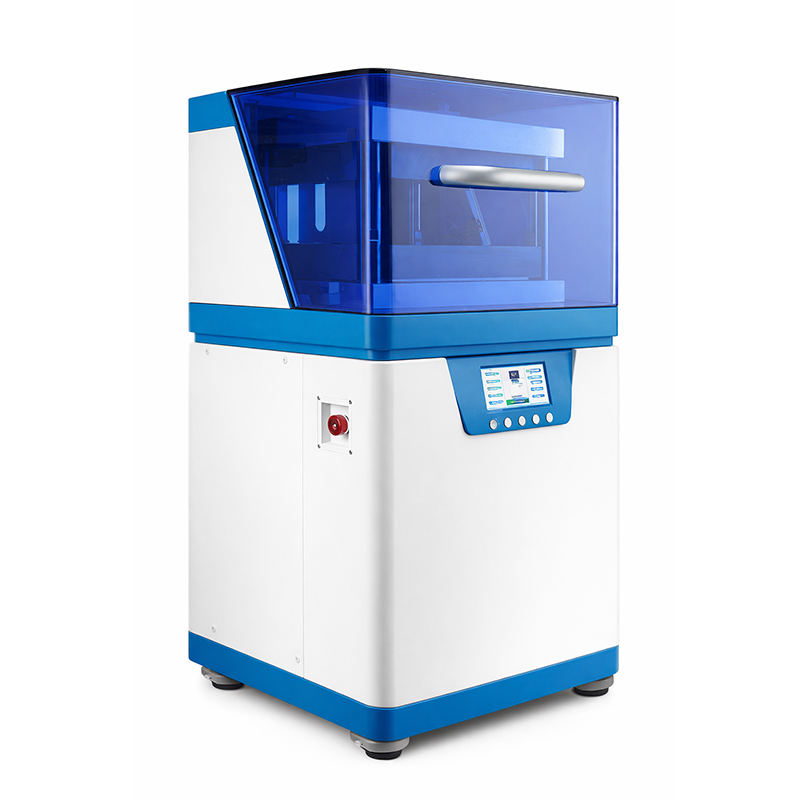

The KS-AHP-600E Full-Automatic Hot Press Machine is an advanced thermal pressing solution designed for precise and efficient processing in a variety of research and industrial applications. With intelligent control systems, high accuracy heating elements, and customizable pressure and temperature programs, this unit offers a highly flexible platform for material testing, sample preparation, lamination, and composite material fabrication.
Technical Parameters
Technical Parameters:
| Item | KS-AHP-600E (300 °C) |
| Model | KS-AHP-600E |
| Heating Temperature | Room Temperature – 300 °C |
| Heating Power | 3 kW |
| Pressure Range | 0.01 – 30 T |
| Pressure Accuracy | 0.01 T |
| Display Screen | 7-inch IPS high-definition touchscreen |
| Control Buttons | Silver-plated contacts, service life ＞100,000 cycles |
| Safety Protection | Over-current protection (automatic power cut-off) + emergency stop, dual safety protection |
| Process Curve Display | Real-time display of each process curve; supports USB export of Excel files |
| Program Control | Up to 18 programmable steps; pressure, temperature and cooling can be controlled independently |
| Water Cooling | Manual or automatic water cooling supported; rapid cooling available in multi-step programs |
| Speed Adjustment | Adjustable pressurizing speed and heating rate |
| Remote Control | PC connection required; supports data analysis, comparison, editing and export |
| Platen Size | 300 × 300 mm |
| Working Space | 320 × 70 mm |
| Power Supply | 220 V / 110 V, customizable |
| Machine Dimensions (L × W × H) | 580 × 580 × 1180 mm |
| Machine Weight | Approx. 580 kg |
| Packing Dimensions (L × W × H) | 900 × 800 × 1400 mm |
| Packing Weight | Approx. 650 kg |
