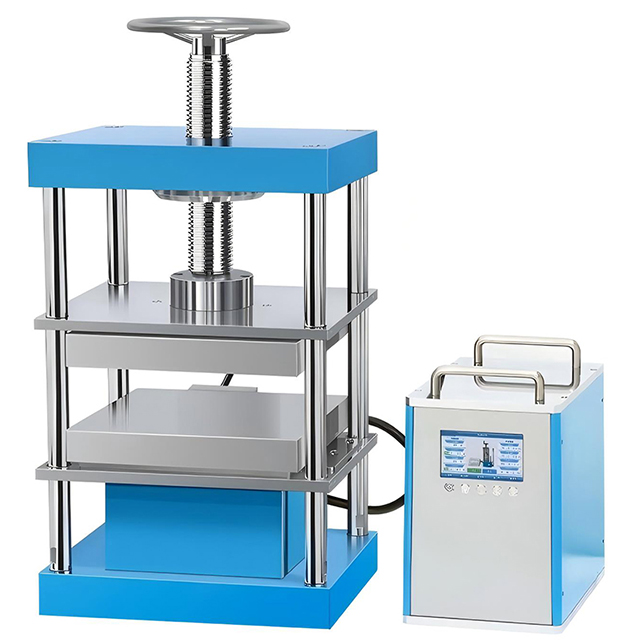

Product Description – KS-PCD-600F Split-Type Automatic Hot Press Machine

The KS-PCD-600F is a high-performance, split-type automatic hot press machine developed to meet the stringent requirements of modern materials research, sample preparation, and small-scale production. Engineered with precision and safety in mind, this model integrates advanced control technology with a robust build, offering consistent performance, precise temperature control, and intelligent pressure programming.

Introduction:

The KS-PCD-600F represents a new generation of hot press equipment designed specifically for research institutions, laboratories, and materials manufacturing sectors. Its split-type design allows for spatial flexibility and better integration into existing laboratory setups. This advanced press machine supports a wide range of applications including thermosetting resin molding, composite material lamination, and thin film pressing. It provides accurate, programmable pressure and temperature control, ensuring reproducibility and stability in pressing processes.

Technical Parameters:

Model	KS-PCD-600F
Pressure Range	0–40.0 MPa
Pressing Process	Programmed press → Programmed pressure hold → Timed pressure release
Pressure Holding Time	1 second ~ ∞ seconds
Mold Heating Temperature	Room temperature ~ 300.0°C
Constant Temperature Time	1 second ~ ∞ seconds
Temperature Control Accuracy	±0.1°C
Insulation Method	Imported insulation plate
Cooling Method	Water-cooled rapid cooling [optional chiller]
Mold Size	400 × 400 mm (M × N)
Main Unit Size	500 × 480 × 650 mm (K × P × H)
Overall Size	850 × 480 × 650 mm (L × W × H)
Power Supply	5500 W (220V / 110V available)
Main Unit Weight	480 Kg
