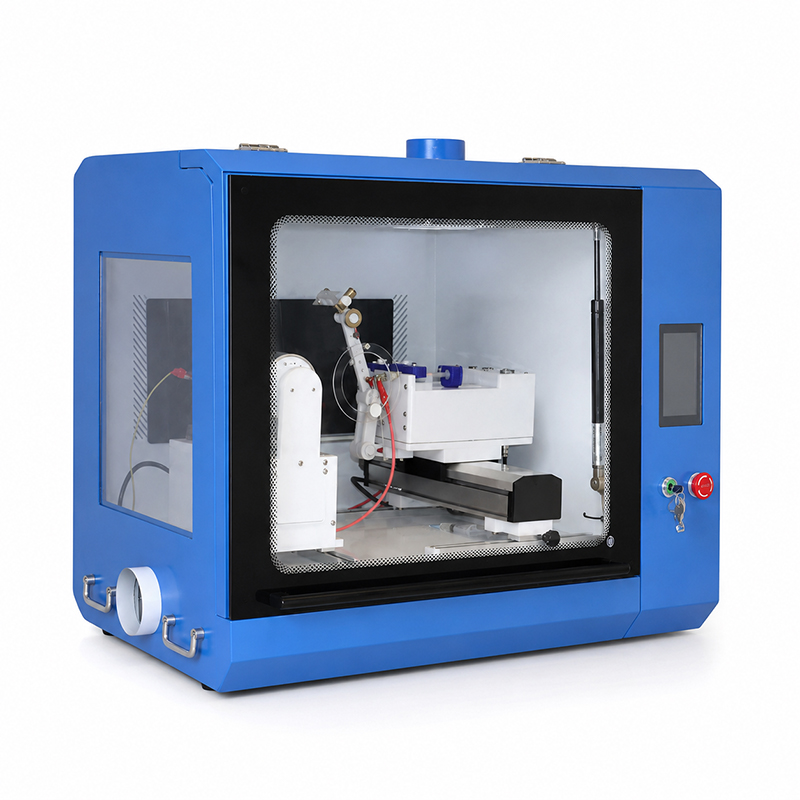

Home - Products - Spin Coater and Spray Pyrolysis - KS-ESP-H02 Fully Automatic Digital Electrospinning Machine for Laboratory R&D
The KS-ESP-H02 is a fully integrated digital electrospinning machine designed for laboratory research and advanced nanofiber preparation. Featuring an intuitive touchscreen control system, the equipment provides convenient operation, high control accuracy, and flexible parameter adjustment for various electrospinning processes.
Technical Parameters
Product Description:
The KS-ESP-H02 is a fully integrated digital electrospinning machine designed for laboratory research and advanced nanofiber preparation. Featuring an intuitive touchscreen control system, the equipment provides convenient operation, high control accuracy, and flexible parameter adjustment for various electrospinning processes. It is suitable for the preparation and research of polymer nanofibers, composite fibers, functional membranes, and other advanced materials. With its integrated design and precise process control, the KS-ESP-H02 is an ideal solution for universities, research institutes, and R&D laboratories working in materials science, filtration, energy, biomedical materials, and related fields.
Technical Parameters：
| Parameter | Specification |
|---|---|
| Model | KS-ESP-H02 |
| Equipment Type | Laboratory Electrospinning Machine |
| Power Supply | AC 220V, 50/60Hz |
| Maximum Power Consumption | 900 W |
| High Voltage Power Supply | 0–30 kV, adjustable |
| High Voltage Display | Digital display, 0.01 kV resolution |
| High Voltage Accuracy | ±0.01 kV |
| Injection System | Dual syringe pump system |
| Syringe Pump Control | Independent control of two syringe pumps |
| Flow Rate Range | 0.1–999.9 mL/h |
| Flow Rate Accuracy | 0.01 mL/h |
| Compatible Syringes | 1, 5, 10, 20, 30 and 50 mL |
| Syringe Holder Capacity | Up to 4 syringe holders |
| Syringe Pump Modes | Single / Dual channel operation |
| Temperature Control | Automatic heating plate temperature control |
| Temperature Range | Room temperature to 65°C |
| Temperature Accuracy | ±0.1°C |
| Humidity Control | Optional |
| Humidity Range | Adjustable up to ≥40% RH |
| Exhaust System | Integrated air exhaust / ventilation system |
| Rotary Collector | Rotating drum collector |
| Drum Diameter | Φ89 mm |
| Drum Length | 200 mm |
| Rotation Speed | 0.01–3000 rpm |
| Rotation Accuracy | 0.01 rpm |
| Flat Plate Collector | 200 × 200 mm |
| Fiber Collector | Ø100 mm fine fiber collector |
| Collector Distance | 0–180 mm adjustable |
| Adjustment System | X/Y/Z three-axis precise adjustment |
| X-axis Travel Range | 0–20 cm |
| Y-axis Travel Range | 5–15 cm |
| Z-axis Adjustment Range | 0–12 cm |
| Motion Control Accuracy | 0.1 mm/s |
| Nozzle System | Multiple nozzle options available |
| Standard Nozzle | Single nozzle |
| Optional Nozzles | Dual, Triple, Coaxial and Janus Coaxial Nozzles |
| Safety System | High-voltage protection, door interlock and overload protection |
| Additional Protection | Leakage protection, emergency stop and flame-retardant protection |
| Machine Dimensions | 850 × 550 × 720 mm |
| Net Weight | Approx. 85 kg |
