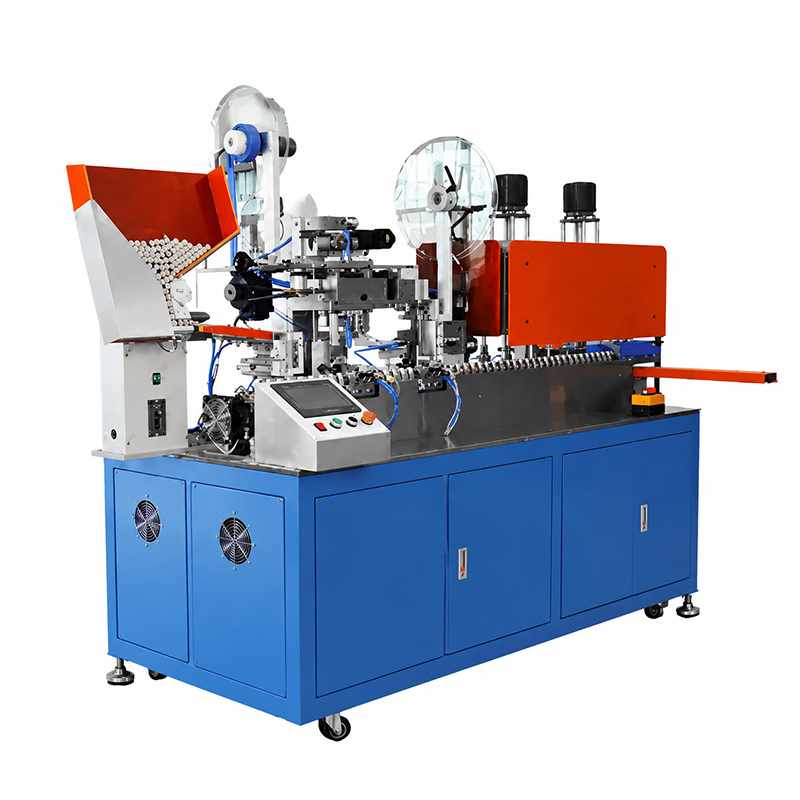

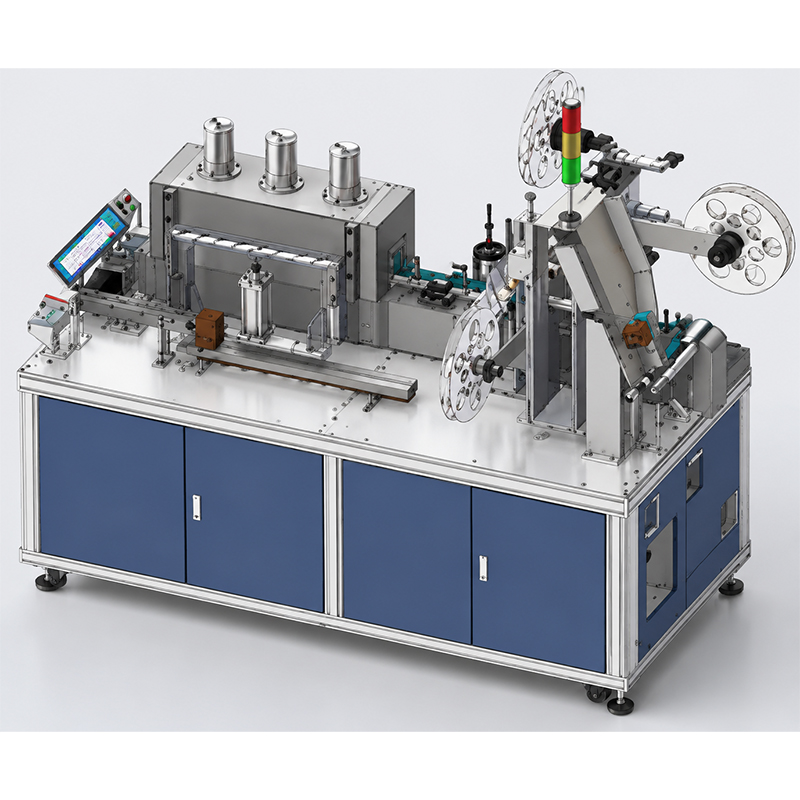

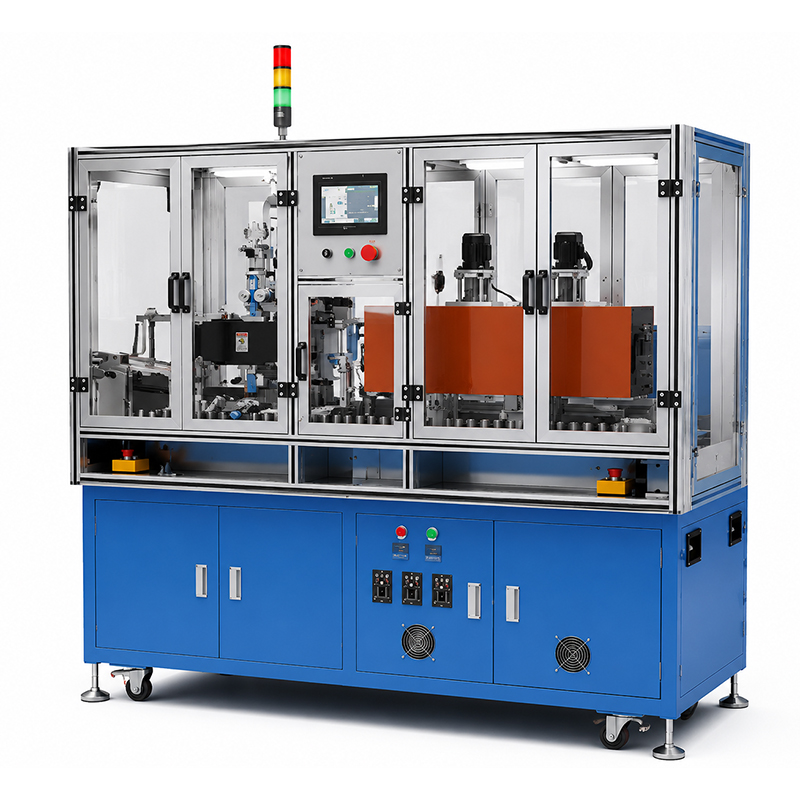

The KS-CDB-HSW is an advanced, fully automated heat shrink wrapping machine designed specifically for cylindrical batteries including AA, AAA, and 18650 cells. Engineered for both precision and speed, this machine delivers a consistent, high-quality shrink wrap while ensuring safety and ease of use.
Technical Parameters
Product Description：
The KS-CDB-HSW is an advanced, fully automated heat shrink wrapping machine designed specifically for cylindrical batteries including AA, AAA, and 18650 cells. Engineered for both precision and speed, this machine delivers a consistent, high-quality shrink wrap while ensuring safety and ease of use.
Key Features and Advantages:
High Efficiency: Capable of processing 50–70 batteries per minute, the KS-CDB-HSW significantly outperforms manual methods,
allowing manufacturers to scale production without compromising quality.
Superior Accuracy: Equipped with a high-precision servo motor and advanced mechanical structure, the machine achieves film positioning accuracy of ±0.1 mm, ensuring uniform insulation and professional appearance for every battery.
Smart and User-Friendly: The intuitive touchscreen interface allows operators to monitor the process in real-time. Built-in fault detection and alarm systems immediately identify issues, reducing downtime and simplifying troubleshooting.
Flexible and Adaptable: Designed for multiple battery sizes, the machine can easily switch between AA, AAA, and 18650 with minimal adjustments. Customizable settings allow manufacturers to adapt to different PVC film types and thicknesses.
Maintenance-Friendly: All components are accessible for cleaning and maintenance. The modular design ensures minimal effort is needed to replace worn parts or adjust settings, keeping production continuous.
Technical Parameters:
| Parameter | Specification |
| Model | KS-CDB-HSW |
| Battery Type | AA, AAA, 18650 Cylindrical Cells |
| Production Speed | 50~70 PCS/MIN |
| Film Positioning Accuracy | ±0.1 mm |
| Power Supply | AC 220V/380V |
| Air Pressure | 0.5~0.7 MPa |
| Power Consumption | 9 kW |
| Machine Weight | 800 kg |
| Machine Dimensions | 2100(L) × 950(W) × 1600(H) mm |
| PVC Casing Requirements | Coil width: 29.7 ± 0.2 mm; Single-layer thickness: 0.08 ± 0.01 mm |
| Insulation Ring Coil Size | Width: 20 ± 0.1 mm; No material break or tape joint allowed in the middle of the coil |
| Insulation Ring Die Size | Outer Diameter: 17.4 ± 0.1 mm; Inner Diameter: 10.5 ± 0.1 mm; Concentricity of inner and outer diameters: ±0.10 mm |
| Heat-Shrink Bottom Edge Size | 2.5 ± 0.3 mm (actual size may vary depending on PVC sleeve material and shrinking conditions) |
