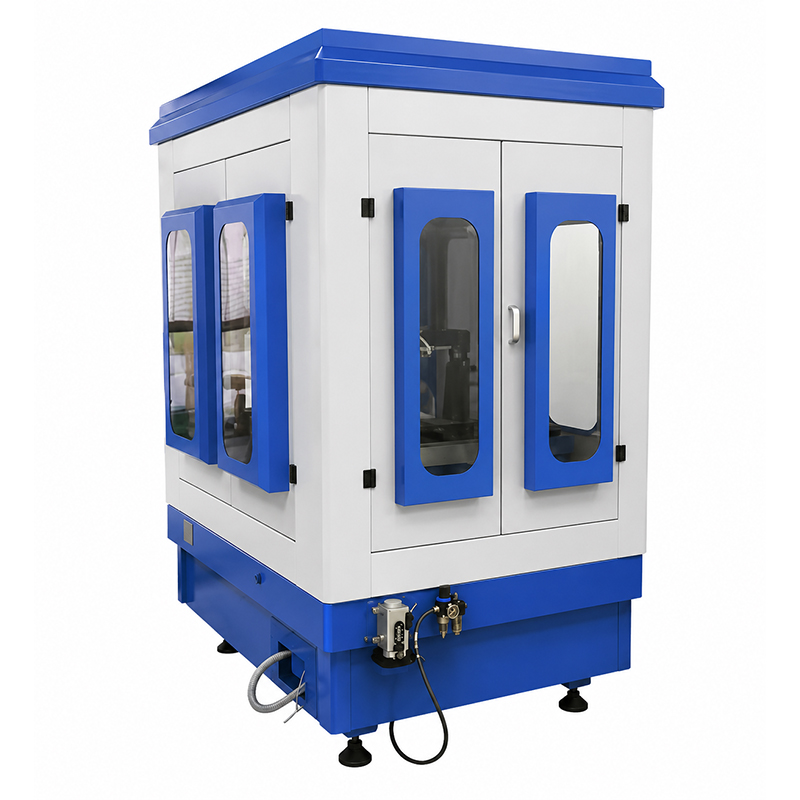

The KS-DWC-800 Diamond Wire Cutting Machine is a high-precision cutting system designed for processing hard and brittle materials with excellent surface quality and minimal material loss.
Technical Parameters
The KS-DWC-800 Diamond Wire Cutting Machine is a high-precision cutting system designed for processing hard and brittle materials with excellent surface quality and minimal material loss. Equipped with an endless electroplated diamond wire, the machine provides stable, high-speed cutting while reducing kerf width and improving machining efficiency.
The workpiece is fed automatically through a precision motion system, while the vertically adjustable diamond wire enables flexible cutting of samples with different sizes and thicknesses. A high-pressure cooling system effectively removes debris and dissipates heat, ensuring long wire life and consistent cutting performance.
The KS-DWC-800 is widely used for cutting single crystal silicon, silicon carbide (SiC), sapphire, optical glass, ceramics, graphite, semiconductor wafers, composite materials, gemstones, and other advanced brittle materials. It is an ideal solution for research laboratories, universities, semiconductor manufacturing, material science, and precision machining industries.
Designed with a rigid structure, automatic tension control, and user-friendly touch-screen operation, the KS-DWC-800 delivers reliable performance, high cutting accuracy, and low operating costs for both R&D and industrial production.
Technical parameters:
| Parameter | Specification |
|---|---|
| Model | KS-DWC-800 |
| Max. Cutting Size (L × W × H) | 700 × 800 × 500 mm |
| Cutting Speed | 0.05–30 mm/min |
| Max. Wire Speed | 0–50 m/s |
| Horizontal Travel | 700 mm |
| Vertical Travel | 300–800 mm (Adjustable) |
| Motor Speed | 4000 RPM |
| Diamond Wire Diameter | Ø0.20–Ø0.35 mm (Optional) |
| Tensioning Method | Automatic Pneumatic Tension |
| Cooling System | High-Pressure Water Cooling |
| Power Supply | AC 380–400 V, 3 Phase, 50/60 Hz |
| Machine Dimensions (L × W × H) | 1500 × 1700 × 1850 mm |
