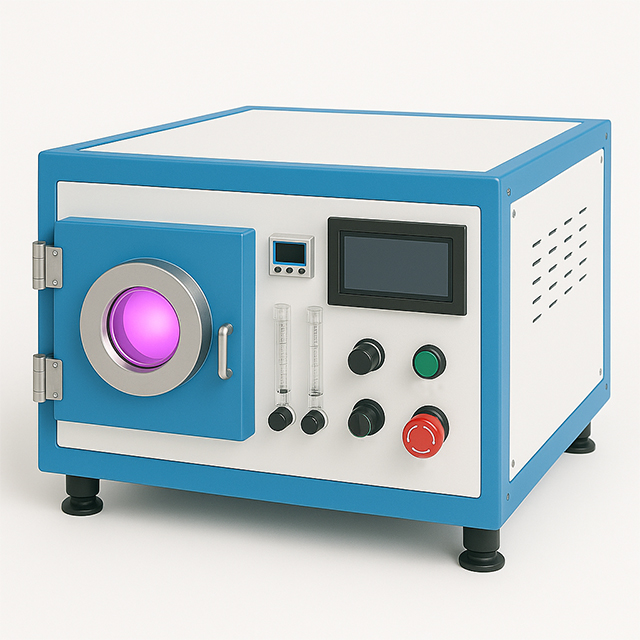

Home - Products - Cleaning Machine - 40Khz 15L and 20L 316 stainless steel chamber plasma surface treatment with 600W power
Precise control of dual-way gas
Square cavity etching cleaning is more uniform
Self-developed power supply with stable efficiency
LED bracket cleaning is preferred
All parameters PLC preset and recorded
Technical Parameters
| Model | KS-PL-15S | KS-PL-15SZ | KS-PL-20S | KS-PL-20SZ | |
| Cavity material quality | 316 stainless steel surface treatment | ||||
| Cavity size | 320×260×200mmThe ×W×H | 380×265×200mm L×W×H | |||
| Cavity capacity | 15L | 20L | |||
| Electrode plates | monolayer | Double layer | monolayer | double deck | |
| Form factor | 650 ×550×440mm L×W×H | ||||
| Power frequency | 40KHz | ||||
| Power supply | 0-600W (continuously adjustable). | ||||
| flowmeter | High precision 2-way float flowmeter | ||||
| vacuometer | Pressure gauge (quantitative value display) | ||||
| Control the process | Fully automatic control and manual (PLC HMI) | ||||
| Cleaning time | 0- 9999S adjustable | ||||
| Vacuum level | 1-30pa | ||||
| Chamber temperature | <60℃ | ||||
| Supply voltage | 220V | ||||
| vacuum pump | 2XZ-4(speed 4L/S) | ||||
